'THE CUBE ACCESS' THE HIGH PERFORMANCE SOLUTION
THE CUBE 32A three-phase power distribution box is the ideal solution for electrical distribution above 10kW.
It is available in several versions for exhibitor distribution up to 22kW, single-phase or single and three-phase.
This box offers a wide range of options, complementing the COMPACT range of power distribution boxes.
It is available in several versions for exhibitor distribution up to 22kW, single-phase or single and three-phase.
This box offers a wide range of options, complementing the COMPACT range of power distribution boxes.
THE CUBE 32A three-phase power distribution box is the ideal solution for electrical distribution above 10kW.
It is available in several versions for exhibitor distribution up to 22kW, single-phase or single and three-phase.
This box offers a wide range of options, complementing the COMPACT range of power distribution boxes.
It is available in several versions for exhibitor distribution up to 22kW, single-phase or single and three-phase.
This box offers a wide range of options, complementing the COMPACT range of power distribution boxes.

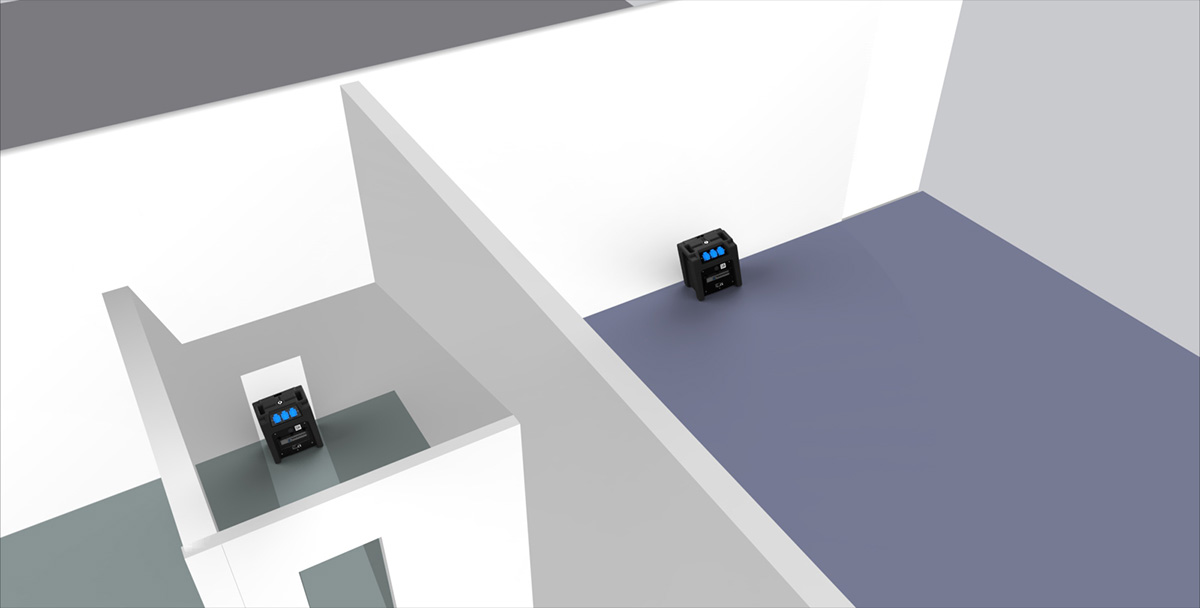

MINIMAL FOOTPRINT
The design of THE CUBE enclosure reduces bulkiness on the stand.
The front of THE CUBE enclosure has been designed to accommodate all the elements on the front panel, including the circuit breaker protection window.
The rear of the enclosure has been specially designed to fit all the sockets for the exhibitor into the thickness of the cabinet.
Dimensions:
H: 40 cm (15,75 in) x W 37.5 cm (14,76 in) x D 30 cm (11,81 in)
Weight: < 8 kg (<17,64 lbs)
Protection index: IP 44
The front of THE CUBE enclosure has been designed to accommodate all the elements on the front panel, including the circuit breaker protection window.
The rear of the enclosure has been specially designed to fit all the sockets for the exhibitor into the thickness of the cabinet.
Dimensions:
H: 40 cm (15,75 in) x W 37.5 cm (14,76 in) x D 30 cm (11,81 in)
Weight: < 8 kg (<17,64 lbs)
Protection index: IP 44
The design of THE CUBE enclosure reduces bulkiness on the stand.
The front of THE CUBE enclosure has been designed to accommodate all the elements on the front panel, including the circuit breaker protection window.
The rear of the enclosure has been specially designed to fit all the sockets for the exhibitor into the thickness of the cabinet.
Dimensions:
H: 40 cm (15,75 in) x W 37.5 cm (14,76 in) x D 30 cm (11,81 in)
Weight: < 8 kg (<17,64 lbs)
Protection index: IP 44
The front of THE CUBE enclosure has been designed to accommodate all the elements on the front panel, including the circuit breaker protection window.
The rear of the enclosure has been specially designed to fit all the sockets for the exhibitor into the thickness of the cabinet.
Dimensions:
H: 40 cm (15,75 in) x W 37.5 cm (14,76 in) x D 30 cm (11,81 in)
Weight: < 8 kg (<17,64 lbs)
Protection index: IP 44
A STURDY ECO-DESIGNED ENCLOSURE
The enclosure of the 'THE CUBE', like the ones of the 'COMPACT' range, meets very demanding criteria, suitable for use in an EXPO environment.
Rotational molding:
In rotomoulded polyethylene (PE), 100% recyclable, one-piece, made in France. The strong ribbing of 'THE CUBE' envelope gives it great stability and robustness.
The microbeading:
'THE CUBE' envelope is microblasted. This process makes it possible to obtain a rough surface that is much less sensitive to scratches and easily washable.
The flaming:
'THE CUBE' enclosure is flamed. This process consists of burning the surface of the envelope. It considerably hardens the edges obtained by bead blasting. The result is a cover that is very resistant to abrasion despite the flexibility of the material.
Rotational molding:
In rotomoulded polyethylene (PE), 100% recyclable, one-piece, made in France. The strong ribbing of 'THE CUBE' envelope gives it great stability and robustness.
The microbeading:
'THE CUBE' envelope is microblasted. This process makes it possible to obtain a rough surface that is much less sensitive to scratches and easily washable.
The flaming:
'THE CUBE' enclosure is flamed. This process consists of burning the surface of the envelope. It considerably hardens the edges obtained by bead blasting. The result is a cover that is very resistant to abrasion despite the flexibility of the material.
The enclosure of the 'THE CUBE', like the ones of the 'COMPACT' range, meets very demanding criteria, suitable for use in an EXPO environment.
Rotational molding:
In rotomoulded polyethylene (PE), 100% recyclable, one-piece, made in France. The strong ribbing of 'THE CUBE' envelope gives it great stability and robustness.
The microbeading:
'THE CUBE' envelope is microblasted. This process makes it possible to obtain a rough surface that is much less sensitive to scratches and easily washable.
The flaming:
'THE CUBE' enclosure is flamed. This process consists of burning the surface of the envelope. It considerably hardens the edges obtained by bead blasting. The result is a cover that is very resistant to abrasion despite the flexibility of the material.
Rotational molding:
In rotomoulded polyethylene (PE), 100% recyclable, one-piece, made in France. The strong ribbing of 'THE CUBE' envelope gives it great stability and robustness.
The microbeading:
'THE CUBE' envelope is microblasted. This process makes it possible to obtain a rough surface that is much less sensitive to scratches and easily washable.
The flaming:
'THE CUBE' enclosure is flamed. This process consists of burning the surface of the envelope. It considerably hardens the edges obtained by bead blasting. The result is a cover that is very resistant to abrasion despite the flexibility of the material.
THE EXPO POWER BOX 100% ERGONOMIC

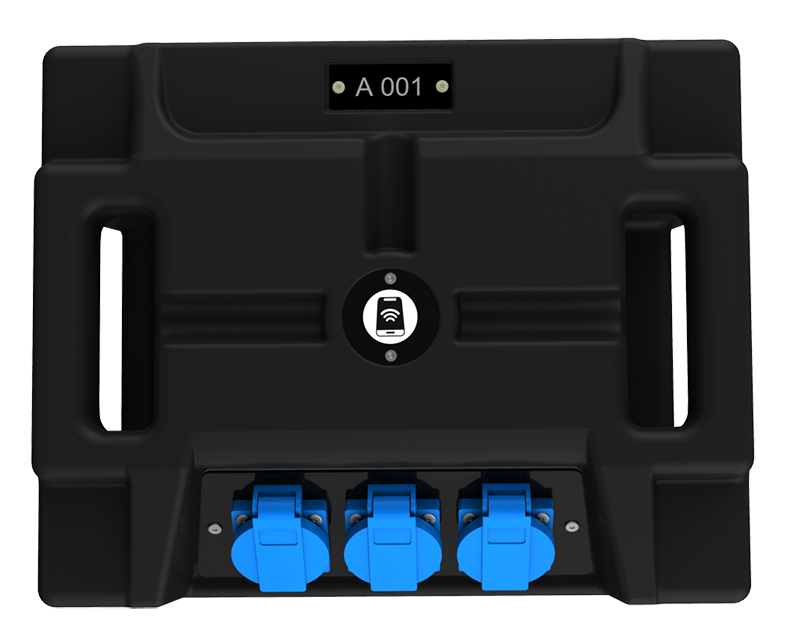

The design of the terminal facilitates handling and storage conditions.
Handling
2 side handles, making it easier to hold.
Stacking
4 legs and the complementary shapes in the upper part guarantee secure stacking.

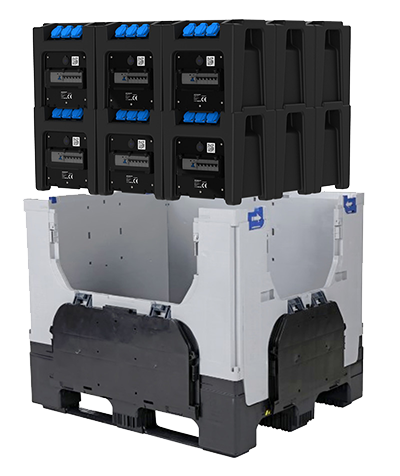

Storage
Standard pallets 1000 x 1200mm
18 'THE CUBE' or 36 'THE CUBE MINI' per pallet box, stackable.
Handling
2 side handles, making it easier to hold.
Stacking
4 legs and the complementary shapes in the upper part guarantee secure stacking.
Storage
Standard pallets 1000 x 1200mm
18 'THE CUBE' or 36 'THE CUBE MINI' per pallet box, stackable.
The design of the terminal facilitates handling and storage conditions.
Handling
2 side handles, making it easier to hold.
Stacking
4 legs and the complementary shapes in the upper part guarantee secure stacking.
Storage
Standard pallets 1000 x 1200mm
18 'THE CUBE' or 36 'THE CUBE MINI' per pallet box, stackable.
Handling
2 side handles, making it easier to hold.
Stacking
4 legs and the complementary shapes in the upper part guarantee secure stacking.
Storage
Standard pallets 1000 x 1200mm
18 'THE CUBE' or 36 'THE CUBE MINI' per pallet box, stackable.
THE CUBE FACILITIES

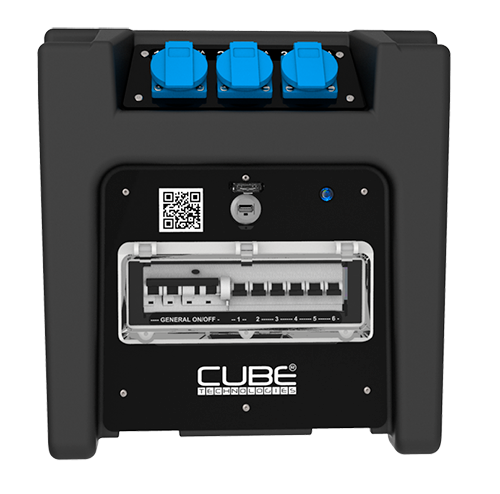

Frontside:
3 Type F or E sockets (depending on country) 16A/3P
positioned on an inclined plane for easy access by the exhibitor.
1 USB A or C socket, 2A with IP44 protective cap
The USB base has a blue LED that allows exhibitors or technicians to check at any time that the box is powered.
1 QR code and 1 NFC tag
for quick connection of the ACCESS TECH and ACCESS CLIENT applications to the box.
The QR code URL can be redirected to an external service (website store or other) on request.

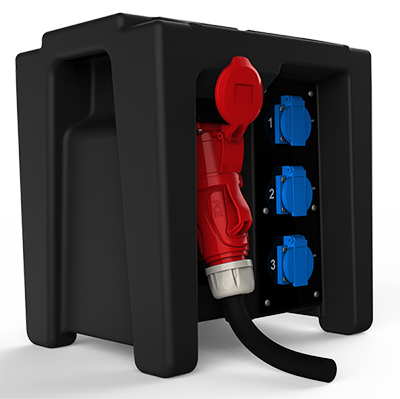

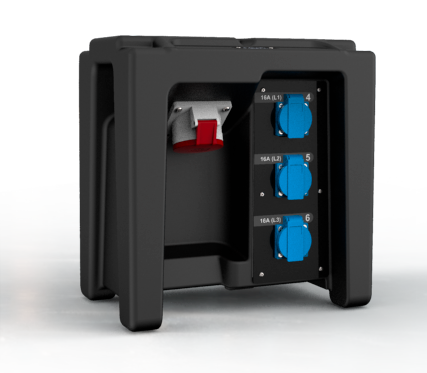

Backside:
3 x 16A/3P sockets
for connecting lighting and other fixed connections on the stand.
1 x CEE/P17 32A/5P power socket base
positioned vertically and inclined at 20° to facilitate connection/disconnection operations.
3 Type F or E sockets (depending on country) 16A/3P
positioned on an inclined plane for easy access by the exhibitor.
1 USB A or C socket, 2A with IP44 protective cap
The USB base has a blue LED that allows exhibitors or technicians to check at any time that the box is powered.
1 QR code and 1 NFC tag
for quick connection of the ACCESS TECH and ACCESS CLIENT applications to the box.
The QR code URL can be redirected to an external service (website store or other) on request.
Backside:
3 x 16A/3P sockets
for connecting lighting and other fixed connections on the stand.
1 x CEE/P17 32A/5P power socket base
positioned vertically and inclined at 20° to facilitate connection/disconnection operations.
Frontside:
3 Type F or E sockets (depending on country) 16A/3P
positioned on an inclined plane for easy access by the exhibitor.
1 USB A or C socket, 2A with IP44 protective cap
The USB base has a blue LED that allows exhibitors or technicians to check at any time that the box is powered.
1 QR code and 1 NFC tag
for quick connection of the ACCESS TECH and ACCESS CLIENT applications to the box.
The QR code URL can be redirected to an external service (website store or other) on request.
Backside:
3 x 16A/3P sockets
for connecting lighting and other fixed connections on the stand.
1 x CEE/P17 32A/5P power socket base
positioned vertically and inclined at 20° to facilitate connection/disconnection operations.
3 Type F or E sockets (depending on country) 16A/3P
positioned on an inclined plane for easy access by the exhibitor.
1 USB A or C socket, 2A with IP44 protective cap
The USB base has a blue LED that allows exhibitors or technicians to check at any time that the box is powered.
1 QR code and 1 NFC tag
for quick connection of the ACCESS TECH and ACCESS CLIENT applications to the box.
The QR code URL can be redirected to an external service (website store or other) on request.
Backside:
3 x 16A/3P sockets
for connecting lighting and other fixed connections on the stand.
1 x CEE/P17 32A/5P power socket base
positioned vertically and inclined at 20° to facilitate connection/disconnection operations.

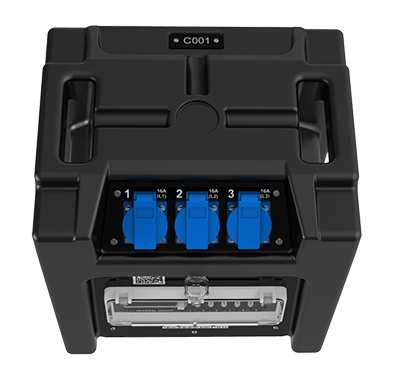

THE CUBE ACCESS 32A THREE-PHASES BEST-SELLING MODEL: TC32A - TM6
In summary: our flagship model, the TC32A-TM6, is equipped as follows:
Single-phase electrical distribution: 6 x 16A/3P outlets
Three-phase electrical distribution: 1 x CEE/P17 32A/5P outlet base
General protection: 1 32A/3P+N/30mA residual current circuit breaker - C curve
Single-phase socket protection: 6 16A/1P circuit breakers (C curve, Icn6kA)
Three-phase socket protection: provided by the general residual current circuit breaker
Smartphone charging socket: USB 2A on front panel with protective cover
Controlled cut-off: single via 40A/3P contactor
Signaling: general cut-off position ON/OFF
Metering: three-phase MID meter
For information on the architecture of other three-phase 32A models, please contact us.
Single-phase electrical distribution: 6 x 16A/3P outlets
Three-phase electrical distribution: 1 x CEE/P17 32A/5P outlet base
General protection: 1 32A/3P+N/30mA residual current circuit breaker - C curve
Single-phase socket protection: 6 16A/1P circuit breakers (C curve, Icn6kA)
Three-phase socket protection: provided by the general residual current circuit breaker
Smartphone charging socket: USB 2A on front panel with protective cover
Controlled cut-off: single via 40A/3P contactor
Signaling: general cut-off position ON/OFF
Metering: three-phase MID meter
For information on the architecture of other three-phase 32A models, please contact us.
In summary: our flagship model, the TC32A-TM6, is equipped as follows:
Single-phase electrical distribution: 6 x 16A/3P outlets
Three-phase electrical distribution: 1 x CEE/P17 32A/5P outlet base
General protection: 1 32A/3P+N/30mA residual current circuit breaker - C curve
Single-phase socket protection: 6 16A/1P circuit breakers (C curve, Icn6kA)
Three-phase socket protection: provided by the general residual current circuit breaker
Smartphone charging socket: USB 2A on front panel with protective cover
Controlled cut-off: single via 40A/3P contactor
Signaling: general cut-off position ON/OFF
Metering: three-phase MID meter
For information on the architecture of other three-phase 32A models, please contact us.
Single-phase electrical distribution: 6 x 16A/3P outlets
Three-phase electrical distribution: 1 x CEE/P17 32A/5P outlet base
General protection: 1 32A/3P+N/30mA residual current circuit breaker - C curve
Single-phase socket protection: 6 16A/1P circuit breakers (C curve, Icn6kA)
Three-phase socket protection: provided by the general residual current circuit breaker
Smartphone charging socket: USB 2A on front panel with protective cover
Controlled cut-off: single via 40A/3P contactor
Signaling: general cut-off position ON/OFF
Metering: three-phase MID meter
For information on the architecture of other three-phase 32A models, please contact us.
