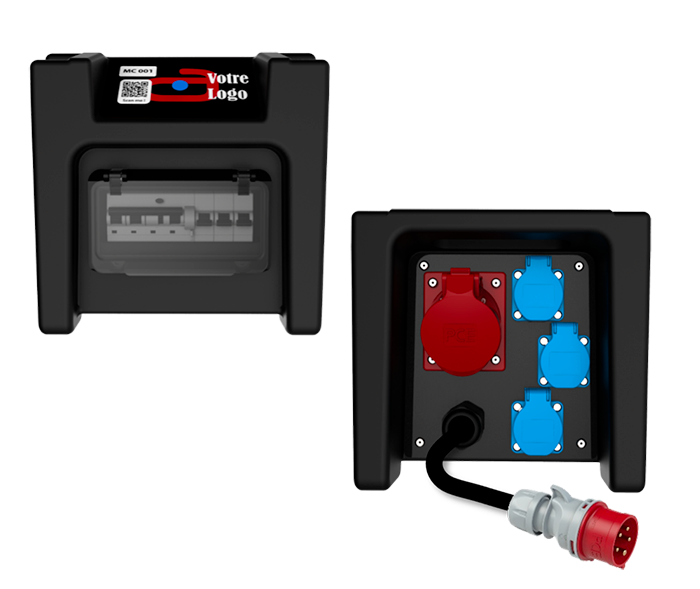

MINI CUBE POWER BOXES THE PERFORMANCE SOLUTION
The MINI CUBE i/o (for IN/OUT) and MINI CUBE standard models are the ideal solution for three-phase AND/OR single-phase power distribution.
They are available in several versions for distribution up to 8 kW (single-phase distribution and feedback) and up to 22 kW (single-phase and three-phase distribution and single-phase feedback).
This power box offers numerous possibilities, complementing the COMPACT XS range.
They are available in several versions for distribution up to 8 kW (single-phase distribution and feedback) and up to 22 kW (single-phase and three-phase distribution and single-phase feedback).
This power box offers numerous possibilities, complementing the COMPACT XS range.
The MINI CUBE i/o (for IN/OUT) and MINI CUBE standard models are the ideal solution for three-phase AND/OR single-phase power distribution.
They are available in several versions for distribution up to 8 kW (single-phase distribution and feedback) and up to 22 kW (single-phase and three-phase distribution and single-phase feedback).
This power box offers numerous possibilities, complementing the COMPACT XS range.
They are available in several versions for distribution up to 8 kW (single-phase distribution and feedback) and up to 22 kW (single-phase and three-phase distribution and single-phase feedback).
This power box offers numerous possibilities, complementing the COMPACT XS range.

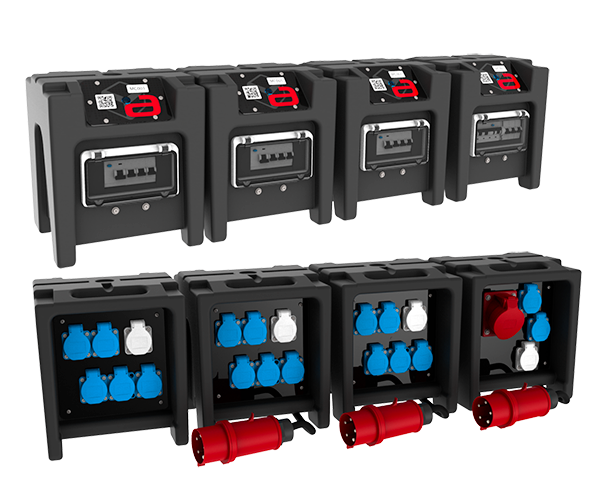

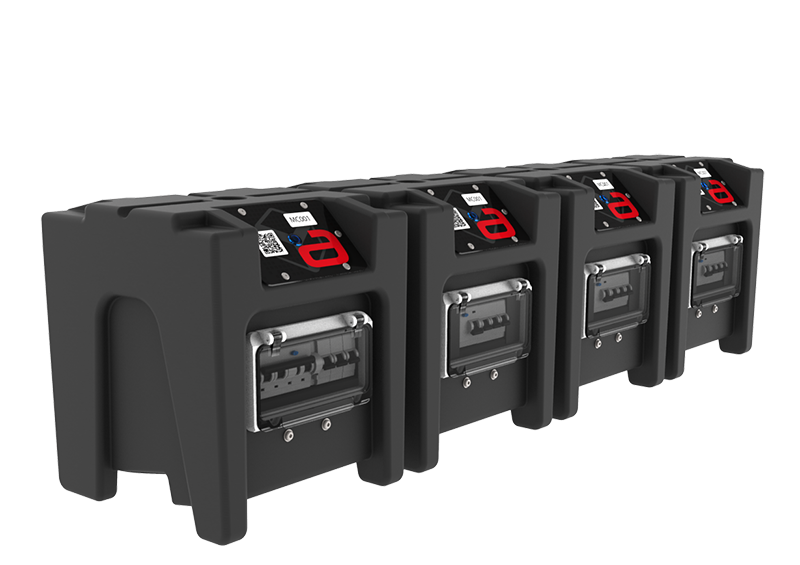

4 IN/OUT ARCHITECTURES 100% VERSATILITY
MINI CUBE i/o1 single-phase 32A
1x32A single-phase copy Exhibitor distribution on the booth 6x16A single-phase (8kW max.)
MINI CUBE i/o3 single-phase 32A
3x32A single-phase copy Exhibitor distribution on the booth 6x16A single-phase (8kW max.)
MINI CUBE i/o5 single-phase 32A
5x20A single-phase copy Exhibitor distribution on the booth 6x16A single-phase (8kW max.)

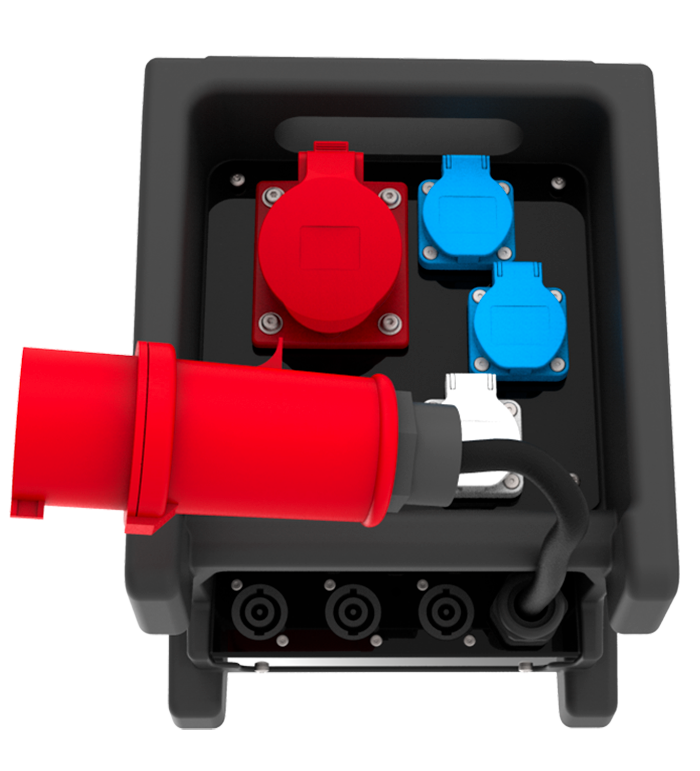

MINI CUBE i/o3 three-phase 32A
3x32A single-phase copy Exhibitor distribution on the booth 3x16A single-phase + 1 x 32A three-phase (22kW max.)
1x32A single-phase copy Exhibitor distribution on the booth 6x16A single-phase (8kW max.)
MINI CUBE i/o3 single-phase 32A
3x32A single-phase copy Exhibitor distribution on the booth 6x16A single-phase (8kW max.)
MINI CUBE i/o5 single-phase 32A
5x20A single-phase copy Exhibitor distribution on the booth 6x16A single-phase (8kW max.)
MINI CUBE i/o3 three-phase 32A
3x32A single-phase copy Exhibitor distribution on the booth 3x16A single-phase + 1 x 32A three-phase (22kW max.)
MINI CUBE i/o1 single-phase 32A
1x32A single-phase copy Exhibitor distribution on the booth 6x16A single-phase (8kW max.)
MINI CUBE i/o3 single-phase 32A
3x32A single-phase copy Exhibitor distribution on the booth 6x16A single-phase (8kW max.)
MINI CUBE i/o5 single-phase 32A
5x20A single-phase copy Exhibitor distribution on the booth 6x16A single-phase (8kW max.)
MINI CUBE i/o3 three-phase 32A
3x32A single-phase copy Exhibitor distribution on the booth 3x16A single-phase + 1 x 32A three-phase (22kW max.)
1x32A single-phase copy Exhibitor distribution on the booth 6x16A single-phase (8kW max.)
MINI CUBE i/o3 single-phase 32A
3x32A single-phase copy Exhibitor distribution on the booth 6x16A single-phase (8kW max.)
MINI CUBE i/o5 single-phase 32A
5x20A single-phase copy Exhibitor distribution on the booth 6x16A single-phase (8kW max.)
MINI CUBE i/o3 three-phase 32A
3x32A single-phase copy Exhibitor distribution on the booth 3x16A single-phase + 1 x 32A three-phase (22kW max.)

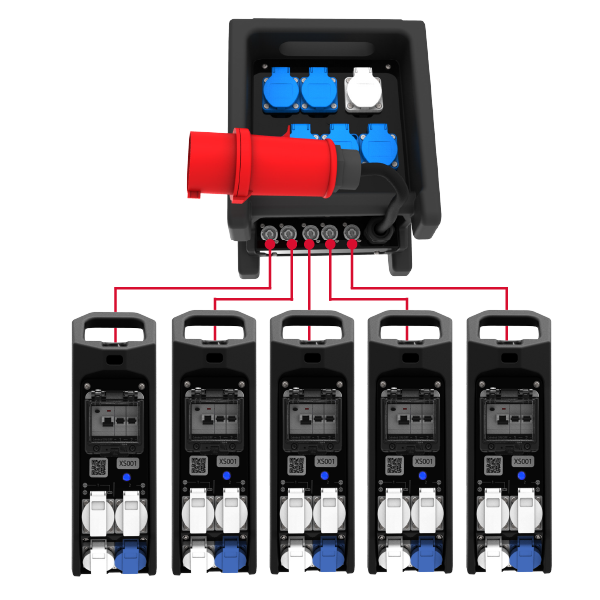

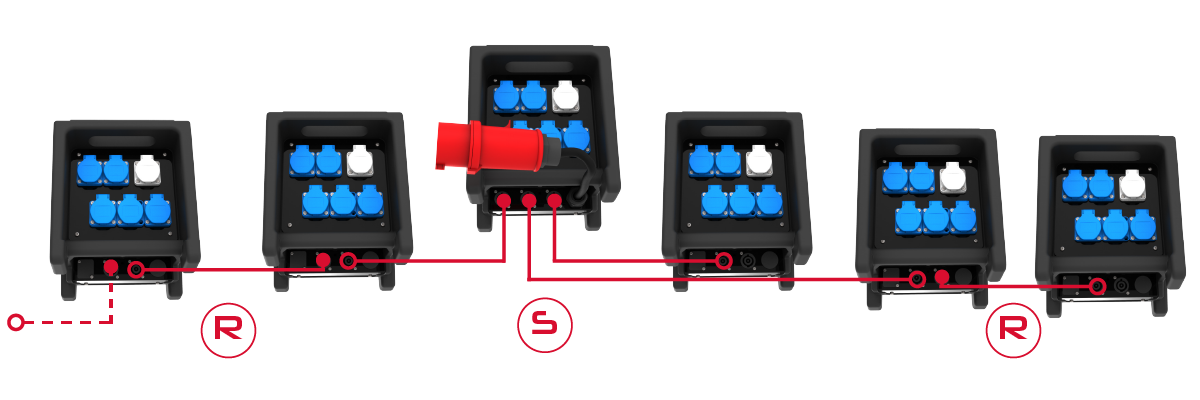

FULL MCi/o SETUP ARCHITECTURE
MC i/o3 + Compact XS32A

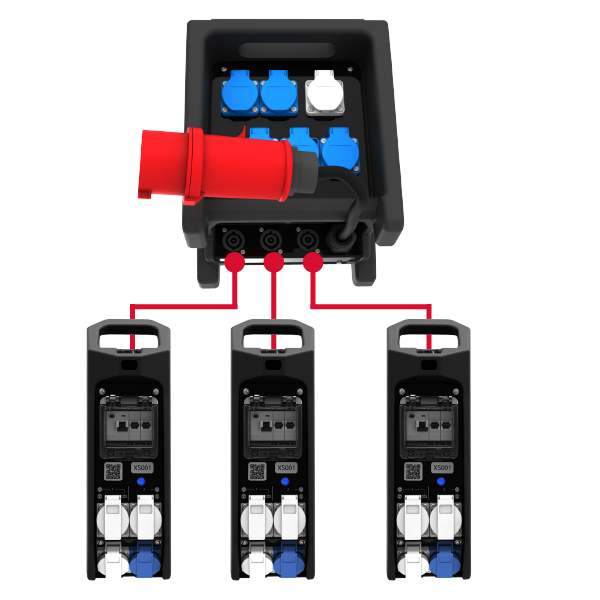

MIXED SETUP ARCHITCTURE
Set-up of the 'SOURCE' power box
The SOURCE box incorporates a converter (three-phase - single-phase) that replaces the SPLITTER
Boxes always adapted to the stand surface area
This type of architecture allows small stands to be equipped with COMPACT XS boxes, which can be suspended directly from the stand structure and fitted with an anti-theft lock
The SOURCE box incorporates a converter (three-phase - single-phase) that replaces the SPLITTER
Boxes always adapted to the stand surface area
This type of architecture allows small stands to be equipped with COMPACT XS boxes, which can be suspended directly from the stand structure and fitted with an anti-theft lock
Set-up of the 'SOURCE' power box
The SOURCE box incorporates a converter (three-phase - single-phase) that replaces the SPLITTER
Boxes always adapted to the stand surface area
This type of architecture allows small stands to be equipped with COMPACT XS boxes, which can be suspended directly from the stand structure and fitted with an anti-theft lock
The SOURCE box incorporates a converter (three-phase - single-phase) that replaces the SPLITTER
Boxes always adapted to the stand surface area
This type of architecture allows small stands to be equipped with COMPACT XS boxes, which can be suspended directly from the stand structure and fitted with an anti-theft lock
MC i/o5 + COMPACT XS18A
3 MC STANDARD ARCHITECTURES 100% POWER CAPACITY
The standard three-phase MINI CUBE model is available in 3 versions:
MINI CUBE three-phase 16A, 16A/3P+N residual current device protection, Curve C – 30mA
3x16A single-phase + 1 x 16A three-phase distribution (12kW max.)
Three-phase MINI CUBE 32A, 32A/3P+N residual current device protection, Curve C – 30mA
Distribution 3x16A single-phase + 1 x 32A three-phase (22kW max.)
MINI CUBE three-phase 32A, 40A/2P residual current device protection, 30mA
3x16A single-phase + 1 x 32A three-phase distribution (22kW max.)
* Optionally, it is possible to replace a 16A socket with a 24-hour (i.e. permanent) socket of a different colour, protected by a 2A curve D circuit breaker (500W max.)
MINI CUBE three-phase 16A, 16A/3P+N residual current device protection, Curve C – 30mA
3x16A single-phase + 1 x 16A three-phase distribution (12kW max.)
Three-phase MINI CUBE 32A, 32A/3P+N residual current device protection, Curve C – 30mA
Distribution 3x16A single-phase + 1 x 32A three-phase (22kW max.)
MINI CUBE three-phase 32A, 40A/2P residual current device protection, 30mA
3x16A single-phase + 1 x 32A three-phase distribution (22kW max.)
* Optionally, it is possible to replace a 16A socket with a 24-hour (i.e. permanent) socket of a different colour, protected by a 2A curve D circuit breaker (500W max.)
The standard three-phase MINI CUBE model is available in 3 versions:
MINI CUBE three-phase 16A, 16A/3P+N residual current device protection, Curve C – 30mA
3x16A single-phase + 1 x 16A three-phase distribution (12kW max.)
Three-phase MINI CUBE 32A, 32A/3P+N residual current device protection, Curve C – 30mA
Distribution 3x16A single-phase + 1 x 32A three-phase (22kW max.)
MINI CUBE three-phase 32A, 40A/2P residual current device protection, 30mA
3x16A single-phase + 1 x 32A three-phase distribution (22kW max.)
* Optionally, it is possible to replace a 16A socket with a 24-hour (i.e. permanent) socket of a different colour, protected by a 2A curve D circuit breaker (500W max.)
MINI CUBE three-phase 16A, 16A/3P+N residual current device protection, Curve C – 30mA
3x16A single-phase + 1 x 16A three-phase distribution (12kW max.)
Three-phase MINI CUBE 32A, 32A/3P+N residual current device protection, Curve C – 30mA
Distribution 3x16A single-phase + 1 x 32A three-phase (22kW max.)
MINI CUBE three-phase 32A, 40A/2P residual current device protection, 30mA
3x16A single-phase + 1 x 32A three-phase distribution (22kW max.)
* Optionally, it is possible to replace a 16A socket with a 24-hour (i.e. permanent) socket of a different colour, protected by a 2A curve D circuit breaker (500W max.)

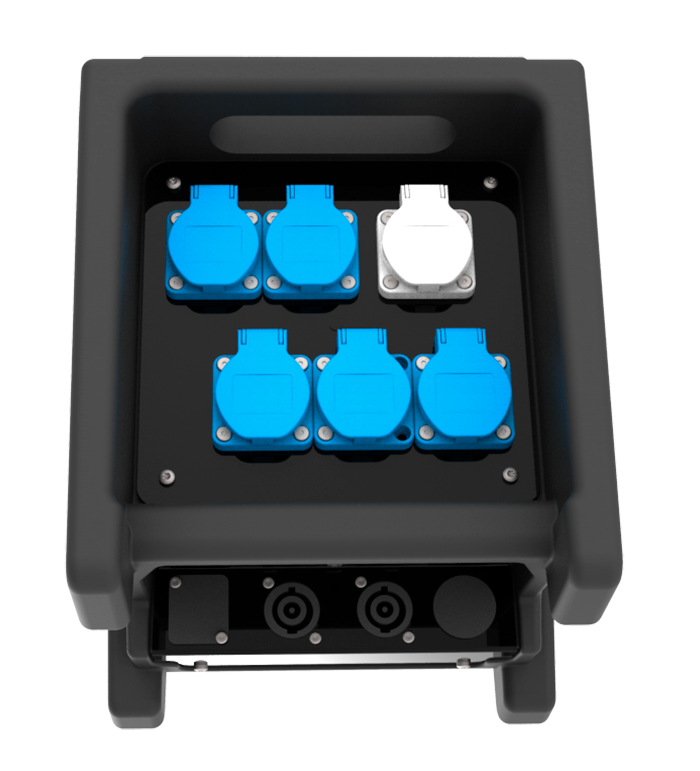

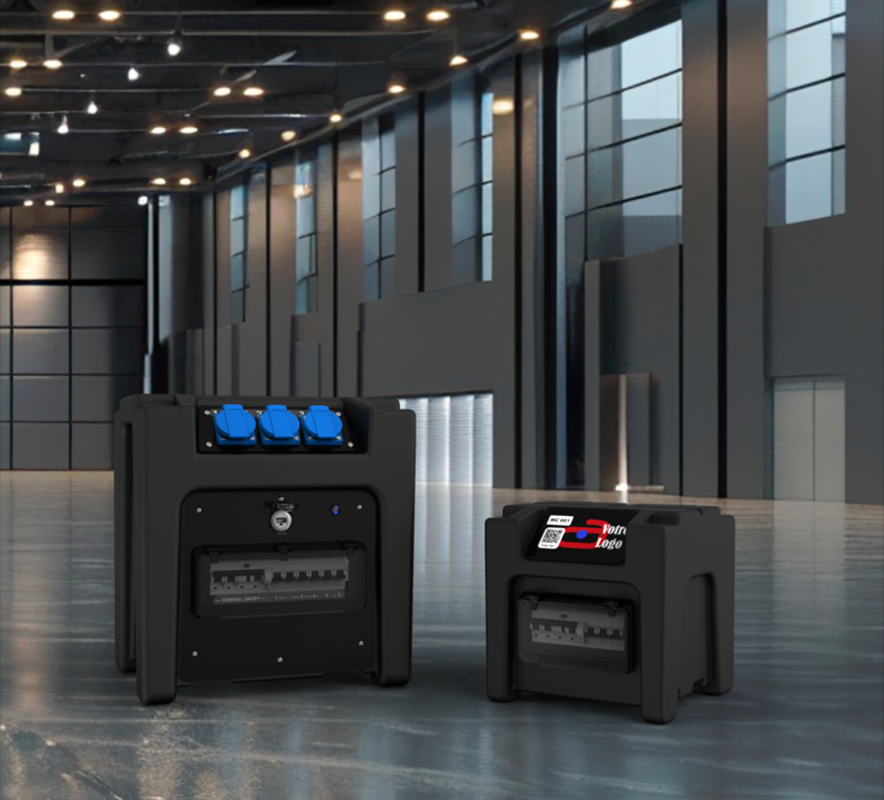

MINI CUBE IN/OUT (I/O)
MAXIMUM DE PERFORMANCE MINIMUM DE VOLUME
Les modèles MINI CUBE portent bien leur nom :

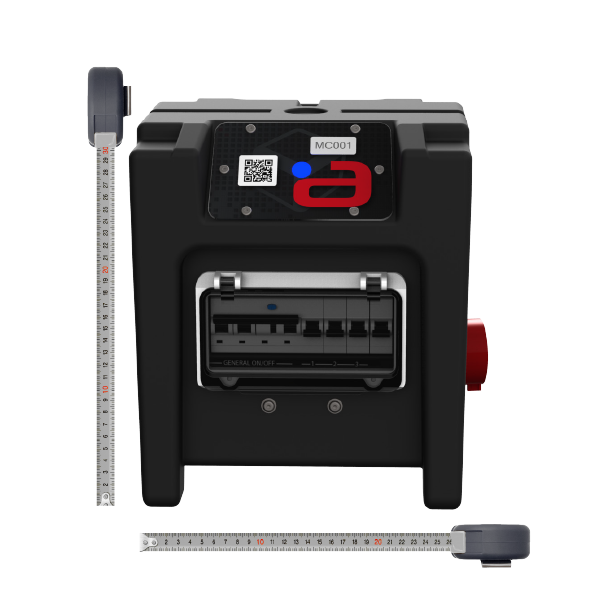

MINI CUBE i/o
H 30 cm x L 26 cm x P 26 cm
Poids : <5kg

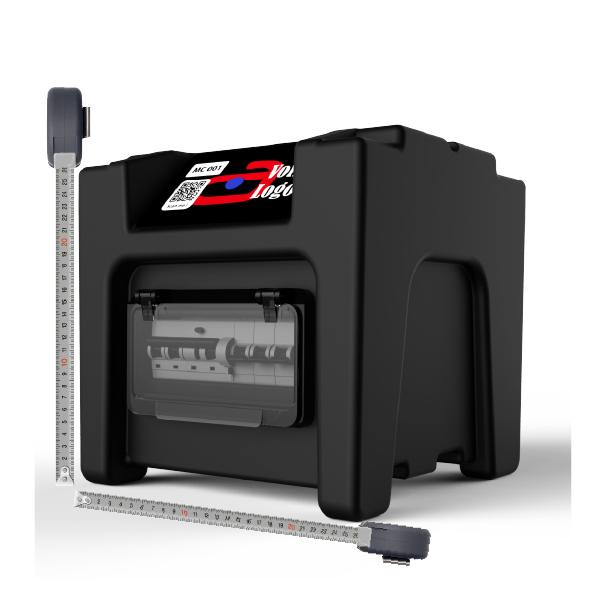

MINI CUBE standard
H 26 cm x L 26 cm x P 26 cm
Poids : <5kg
Indice de protection : IP 44
MINI CUBE i/o
H 30 cm x L 26 cm x P 26 cm
Poids : <5kg
MINI CUBE standard
H 26 cm x L 26 cm x P 26 cm
Poids : <5kg
Indice de protection : IP 44
Les modèles MINI CUBE portent bien leur nom :
MINI CUBE i/o
H 30 cm x L 26 cm x P 26 cm
Poids : <5kg
MINI CUBE standard
H 26 cm x L 26 cm x P 26 cm
Poids : <5kg
Indice de protection : IP 44
MINI CUBE i/o
H 30 cm x L 26 cm x P 26 cm
Poids : <5kg
MINI CUBE standard
H 26 cm x L 26 cm x P 26 cm
Poids : <5kg
Indice de protection : IP 44
MINI CUBE STANDARD
100% USER-FRIENDLY POWER BOXES
Repeated handling during assembly, disassembly, and storage … the everyday reality of exhibition suppliers.
Our goal: power boxes enjoyed by your technical teams!
Stacking
Four feet and complementary shapes at the top ensure secure stacking of all models.
Setup
A handle moulded into the casing, at the top rear of the box, facilitates
grasping
Transport & storage
The cabinets are delivered in raised pallet crates measuring 1200 x 1000 x 1080 mm:
36 Mini Cube cabinets per pallet crate, stackable
Our goal: power boxes enjoyed by your technical teams!
Stacking
Four feet and complementary shapes at the top ensure secure stacking of all models.
Setup
A handle moulded into the casing, at the top rear of the box, facilitates
grasping
Transport & storage
The cabinets are delivered in raised pallet crates measuring 1200 x 1000 x 1080 mm:
36 Mini Cube cabinets per pallet crate, stackable
Repeated handling during assembly, disassembly, and storage … the everyday reality of exhibition suppliers.
Our goal: power boxes enjoyed by your technical teams!
Stacking
Four feet and complementary shapes at the top ensure secure stacking of all models.
Setup
A handle moulded into the casing, at the top rear of the box, facilitates
grasping
Transport & storage
The cabinets are delivered in raised pallet crates measuring 1200 x 1000 x 1080 mm:
36 Mini Cube cabinets per pallet crate, stackable
Our goal: power boxes enjoyed by your technical teams!
Stacking
Four feet and complementary shapes at the top ensure secure stacking of all models.
Setup
A handle moulded into the casing, at the top rear of the box, facilitates
grasping
Transport & storage
The cabinets are delivered in raised pallet crates measuring 1200 x 1000 x 1080 mm:
36 Mini Cube cabinets per pallet crate, stackable
A STURDY ECO-DESIGNED ENCLOSURE
The enclosure of the 'THE CUBE', like the ones of the 'COMPACT' range, meets very demanding criteria, suitable for use in an EXPO environment.
Rotational molding:
In rotomoulded polyethylene (PE), 100% recyclable, one-piece, made in France. The strong ribbing of 'THE CUBE' envelope gives it great stability and robustness.
The microbeading:
'THE CUBE' envelope is microblasted. This process makes it possible to obtain a rough surface that is much less sensitive to scratches and easily washable.
The flaming:
'THE CUBE' enclosure is flamed. This process consists of burning the surface of the envelope. It considerably hardens the edges obtained by bead blasting. The result is a cover that is very resistant to abrasion despite the flexibility of the material.
Rotational molding:
In rotomoulded polyethylene (PE), 100% recyclable, one-piece, made in France. The strong ribbing of 'THE CUBE' envelope gives it great stability and robustness.
The microbeading:
'THE CUBE' envelope is microblasted. This process makes it possible to obtain a rough surface that is much less sensitive to scratches and easily washable.
The flaming:
'THE CUBE' enclosure is flamed. This process consists of burning the surface of the envelope. It considerably hardens the edges obtained by bead blasting. The result is a cover that is very resistant to abrasion despite the flexibility of the material.
The enclosure of the 'THE CUBE', like the ones of the 'COMPACT' range, meets very demanding criteria, suitable for use in an EXPO environment.
Rotational molding:
In rotomoulded polyethylene (PE), 100% recyclable, one-piece, made in France. The strong ribbing of 'THE CUBE' envelope gives it great stability and robustness.
The microbeading:
'THE CUBE' envelope is microblasted. This process makes it possible to obtain a rough surface that is much less sensitive to scratches and easily washable.
The flaming:
'THE CUBE' enclosure is flamed. This process consists of burning the surface of the envelope. It considerably hardens the edges obtained by bead blasting. The result is a cover that is very resistant to abrasion despite the flexibility of the material.
Rotational molding:
In rotomoulded polyethylene (PE), 100% recyclable, one-piece, made in France. The strong ribbing of 'THE CUBE' envelope gives it great stability and robustness.
The microbeading:
'THE CUBE' envelope is microblasted. This process makes it possible to obtain a rough surface that is much less sensitive to scratches and easily washable.
The flaming:
'THE CUBE' enclosure is flamed. This process consists of burning the surface of the envelope. It considerably hardens the edges obtained by bead blasting. The result is a cover that is very resistant to abrasion despite the flexibility of the material.
